All-terrain crane
Liebherr LTM 1300-6.2
The Liebherr LTM 1300-6.2 is a 300 tonne, six axle all-terrain crane with a 78m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

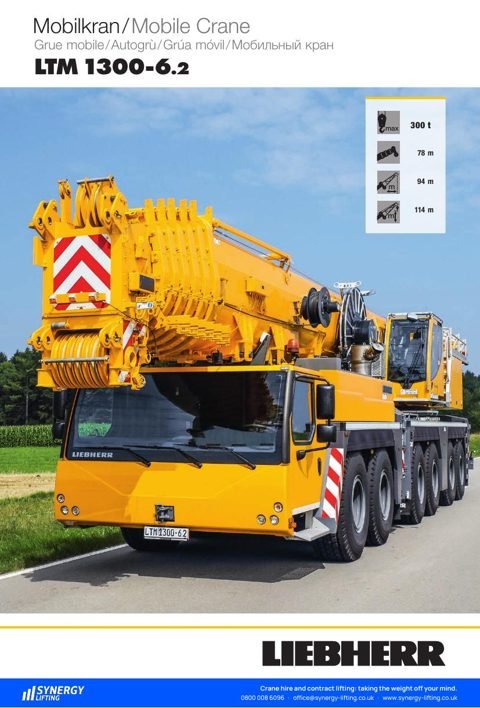

Download the Liebherr LTM 1300-6.2 spec sheet
Liebherr LTM 1300-6.2
Download the manufacturer’s specification sheet (PDF · 92 pages · 4.4MB).
Key figures
Liebherr LTM 1300-6.2 key figures
- Maximum capacity
- 300 tonnes
- Main boom
- 14.7m to 78m
- Jib
- Up to 70mLuffing fly jib 17.5m to 70m; fixed lattice jib 14m to 42m; swing-away jib 12.5m to 35m
- Counterweight
- 56 to 96 tonnes
- Axle lines
- 6
Specification
Liebherr LTM 1300-6.2 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1300-6.2 |
| Type | All-terrain crane |
| Maximum capacity | 300 tonnes at 3m radius |
| Main boom | 14.7m to 78m, base section and 6 telescopic sections, TELEMATIK telescoping system |
| Jib | Swing-away jib (K) 12.5m to 35m, offset 0, 20 or 40 degrees, integrated 5.5m erection jib optional; hydraulically adjustable swing-away jib (NZK) 12.5m to 35m, 0 to 40 degrees; fixed lattice jib (F) 14m to 42m, 0, 20 or 40 degrees; luffing fly jib (N) 17.5m to 70m |
| Counterweight | 56 tonnes; up to 96 tonnes with 4 optional additional 10 tonne slabs; UK counterweight optional |
| Weight and axle loads | 12 tonnes per axle, 72 tonnes in total |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, remote control, automatic levelling, electronic inclination display |
| Axle lines | 6, all steered; 12 x 8 drive optional (axle 4 additionally driven) |
| Tyres and width | 12 single tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional |
| Suspension | Hydropneumatic with automatic levelling, all axles, hydraulically lockable |
| Engine | Liebherr 8-cylinder diesel, 455kW (619hp), 3,068Nm; single engine, crane hydraulics driven mechanically from the carrier |
| Transmission | ZF automatic with torque converter and intarder, 12 forward and 2 reverse |
| Control and safety | Two self-centring joysticks, LICCON2 safe load indicator, test system, hoist limit switches, safety valves against rupture of pipes and hoses |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1300-6.2 compared with similar cranes
| This craneLiebherr LTM 1300-6.2 | Grove GMK6300L | Grove GMK6300L-1 | Liebherr LTM 1300-6.3 | |
|---|---|---|---|---|
| Maximum capacity | 300 tonnes | 300 tonnes | 300 tonnes | 300 tonnes |
| Main boom | 14.7m to 78m | 15.6m to 80m | 15.6m to 80m | 14.7m to 90m |
| Swingaway jib | Not stated | 12m or 21m | 12m or 21m | Not stated |
| Jib | Up to 70m | Not stated | Not stated | Up to 43m |
| Maximum tip height | Not stated | 83m | 83m | Not stated |
| Counterweight | 56 to 96 tonnes | 54.5 to 92.5 tonnes | 54.5 to 92.5 tonnes | 68 to 88 tonnes |
| Axle lines | 6 | 6 | 6 | 6 |
