All-terrain crane
Liebherr LTM 1250-5.1
The Liebherr LTM 1250-5.1 is a 250 tonne, five axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 250 tonnes
- Main boom
- 13.1m to 60m
- Jib
- Up to 50mFixed lattice jib 8m to 50m; swing-away jib 5.4m to 36m
- Counterweight
- 68 to 88 tonnes
- Axle lines
- 5

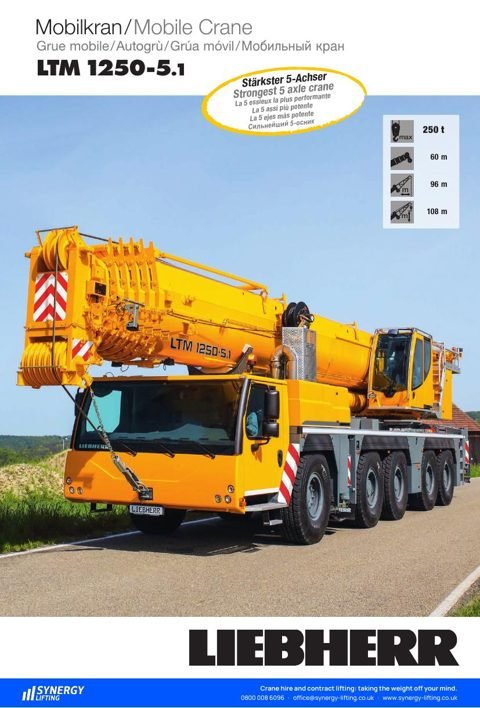

Download the Liebherr LTM 1250-5.1 spec sheet
Liebherr LTM 1250-5.1 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 80 pages, 3.7MB.
Liebherr LTM 1250-5.1 load chart summary
What the Liebherr LTM 1250-5.1 can lift at each radius on its main boom, with 88 tonnes of counterweight, outriggers fully extended and 360 degree slewing. Each figure is the highest on the manufacturer load chart at that radius, shown with the main boom length it applies to. The last column gives the load with the boom fully extended to 60m.
| Radius | Maximum load | Main boom length | At full 60m boom |
|---|---|---|---|
| 3m | 134 tonnes | 13.1m | Not charted |
| 5m | 120.3 tonnes | 17.4m | Not charted |
| 8m | 87.1 tonnes | 26m | Not charted |
| 10m | 72.7 tonnes | 26m | Not charted |
| 12m | 61.7 tonnes | 26m | 24.5 tonnes |
| 20m | 35.1 tonnes | 26m | 20.3 tonnes |
| 30m | 20.6 tonnes | 34.6m | 15.2 tonnes |
| 40m | 13.1 tonnes | 47.6m | 11.5 tonnes |
| 50m | 8.9 tonnes | 54.9m | 8.3 tonnes |
Taken from the manufacturer load chart for this configuration and given as a guide only. The hook block and lifting accessories count towards the load, other configurations give different figures, and nothing here forms part of a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1250-5.1 |
| Type | All-terrain crane |
| Maximum capacity | 250 tonnes at 3m radius |
| Main boom | 13.1m to 60m, base section and 5 telescopic sections, TELEMATIK telescoping system |
| Jib | Swing-away jib (K) 5.4m, 12.2m to 22m, 29m or 36m, offset 0, 22.5 or 45 degrees; hydraulically adjustable swing-away jib (NZK) same lengths, 0 to 45 degrees; fixed lattice jib (NZF) 8m to 50m, hydraulic adjustment 0 to 45 degrees; powerful jib (S) 4m to 46m at 0 degrees; telescopic boom extension 2 x 7m |
| Counterweight | 68 tonnes; up to 88 tonnes with the optional additional 20 tonnes |
| Weight and axle loads | 12 tonnes per axle, 60 tonnes in total |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, remote control, automatic levelling, electronic inclination display; VarioBase optional |
| Axle lines | 5, all steered; 10 x 8 drive optional (additional drive of axle 3) |
| Tyres and width | 10 tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional |
| Suspension | Niveaumatik hydropneumatic, all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, 400kW (544hp), 2,516Nm; single engine, crane hydraulics driven mechanically from the carrier |
| Transmission | ZF 12-speed automated, ZF intarder, two-stage transfer case |
| Control and safety | Electric Load Sensing control, LICCON2 safe load indicator, test system, hoist limit switches, safety valves against rupture of pipes and hoses |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTM 1250-5.1 compared with similar cranes
| This craneLiebherr LTM 1250-5.1 | Grove GMK5250L | Grove GMK5250L-1 | Grove GMK5250XL-1 | |
|---|---|---|---|---|
| Maximum capacity | 250 tonnes | 250 tonnes | 250 tonnes | 250 tonnes |
| Main boom | 13.1m to 60m | 13.3m to 70m | 13.3m to 70m | 13.4m to 78.5m |
| Swingaway jib | Not stated | 12m or 21m | 12m or 21m | 11.2m or 17.8m |
| Jib | Up to 50m | Not stated | Not stated | Not stated |
| Maximum tip height | Not stated | 73m | 73m | 81m |
| Counterweight | 68 to 88 tonnes | 80 tonnes | 80 tonnes | 80 tonnes |
| Axle lines | 5 | 5 | 5 | 5 |
| More detail | Download spec sheet | View Grove GMK5250L | View Grove GMK5250L-1 | View Grove GMK5250XL-1 |
