All-terrain crane
Grove GMK5120L
The Grove GMK5120L is a 120 tonne, five axle all-terrain crane with a 66m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 120 tonnes
- Main boom
- 12.2m to 66m
- Swingaway jib
- 9.4m or 16mUp to 24m with boom extensions, optional
- Maximum tip height
- 69mOn the main boom
- Counterweight
- 35.5 tonnes
- Axle lines
- 5
Download the Grove GMK5120L spec sheet

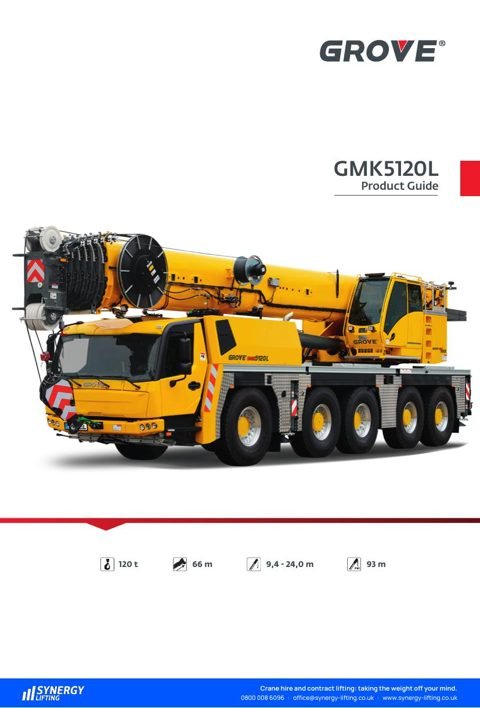

Grove GMK5120L specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 44 pages, 5.4MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Grove (Manitowoc) |
| Model | GMK5120L |
| Type | All-terrain crane |
| Maximum capacity | 120 tonnes |
| Main boom | 12.2m to 66m, seven section TWIN-LOCK |
| Boom angle | -1.5 to +83 degrees |
| Maximum tip height | 69m on the main boom |
| Swingaway jib | Optional bi-fold 9.4m or 16m, hydraulic offset and luffing under load 0 to 40 degrees; optional 8m boom extensions for a maximum total length of 24m |
| Counterweight | 35.5 tonnes in sections (30.7 tonnes within 2.75m vehicle width), hydraulic removal system |
| Weight and axle loads | 10 tonnes per axle line (50 tonnes) with 3.1t counterweight; 12 tonnes per axle line (60 tonnes) with 10t to 14.6t counterweight depending on drive, wheels, hookblock and jib; 16.5 tonnes per axle line (82.5 tonnes) with 30.7t counterweight, 10×8, 445/95 tyres, 3 sheave hookblock and 16m swingaway |
| Outriggers | 4 double hydraulically telescoping beams, automatic levelling |
| Axle lines | 5, all steered, lines 2, 4 and 5 driven (10x6x10; 10x8x10 optional) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) at 2.75m wide; 525/80 R25 (20.5 R25) at 2.9m wide |
| Suspension | MEGATRAK independent hydropneumatic, all wheels, with hydraulic lockout and active suspension control |
| Engine | Mercedes-Benz OM471LA six cylinder diesel, 390kW at 1,600rpm, single engine for carrier and crane, EUROMOT 5 / Tier 4 Final (Tier 3 optional) |
| Transmission | Mercedes G 280, 16 forward and 2 reverse |
| Control and safety | Crane Control System (CCS), rated capacity limiter, independent anti-two-block with control lever lock-out, IR hoist camera, Grove CONNECT telematics |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Grove GMK5120L compared with similar cranes
| This craneGrove GMK5120L | Liebherr LTM 1120-4.1 | Terex Demag AC 120-1 | Liebherr LTM 1110-5.1 | |
|---|---|---|---|---|
| Maximum capacity | 120 tonnes | 120 tonnes | 120 tonnes | 110 tonnes |
| Main boom | 12.2m to 66m | 12.3m to 66m | 12.5m to 60m | 11.5m to 60m |
| Swingaway jib | 9.4m or 16m | 10.8m to 19m | 9.1m or 17m | 10.8m to 19m |
| Maximum tip height | 69m | Not stated | Not stated | Not stated |
| Counterweight | 35.5 tonnes | 20 to 31 tonnes | 40.4 tonnes | 13.4 to 29 tonnes |
| Carrier width | Not stated | Not stated | 2.75m | Not stated |
| Axle lines | 5 | 4 | 5 | 5 |
| More detail | Download spec sheet | View Liebherr LTM 1120-4.1 | View Terex Demag AC 120-1 | View Liebherr LTM 1110-5.1 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
