All-terrain crane
Liebherr LTM 1110-5.2
The Liebherr LTM 1110-5.2 is a 110 tonne, five axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 110 tonnes
- Main boom
- 11.5m to 60m
- Swingaway jib
- 10.8m to 19mOptional
- Counterweight
- 13.4 to 29 tonnes
- Axle lines
- 5
Download the Liebherr LTM 1110-5.2 spec sheet

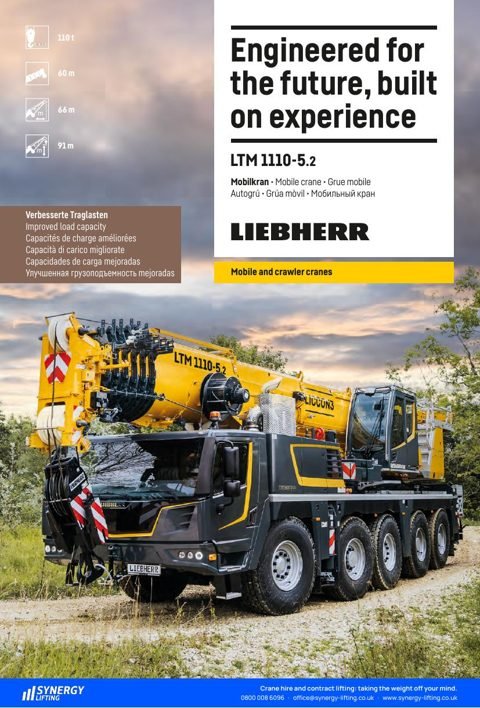

Liebherr LTM 1110-5.2 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 42 pages, 4.8MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1110-5.2 |
| Type | All-terrain crane |
| Maximum capacity | 110 tonnes |
| Main boom | 11.5m to 60m, base section and 6 telescopic sections, TELEMATIK rapid-cycle telescoping |
| Swingaway jib | Optional single folding jib 10.8m or double swing-away jib 10.8m to 19m, mechanical adjustment 0, 20 or 40 degrees or hydraulic adjustment 0 to 40 degrees; optional 2 x 7m telescopic boom extension; optional 2.9m assembly jib |
| Counterweight | 13.4 tonnes; up to 29 tonnes with the optional additional 15.6 tonnes |
| Weight and axle loads | On road, 12 tonnes per axle line, 60 tonnes in total, with 13.4t counterweight |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, remote control, automatic levelling, electronic inclination display; VarioBase Plus |
| Axle lines | 5, all steered; 10×8 drive optional (first axle additionally driven) |
| Tyres and width | 10 tyres, 385/95 R25 standard; 445/95 R25 and 525/80 R25 optional |
| Suspension | Niveaumatik hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, water cooled, 400kW (544hp), 2,516Nm maximum torque, EU 2016/1628 and EPA/CARB or ECE-R.96; also drives the superstructure mechanically |
| Transmission | ZF TraXon automated 12-speed gearbox with oil-cooled multi-disc clutch and intarder, two-stage transfer case |
| Control and safety | LICCON3 safe load indicator, electric load sensing control, test system, hoist limit switch, pipe and hose rupture safety valves |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTM 1110-5.2 compared with similar cranes
| This craneLiebherr LTM 1110-5.2 | Liebherr LTM 1110-5.1 | Grove GMK4100 | Grove GMK4100L | |
|---|---|---|---|---|
| Maximum capacity | 110 tonnes | 110 tonnes | 100 tonnes | 100 tonnes |
| Main boom | 11.5m to 60m | 11.5m to 60m | 11.3m to 52m | 11.65m to 60m |
| Swingaway jib | 10.8m to 19m | 10.8m to 19m | 10m or 17m | 10m or 17m |
| Maximum tip height | Not stated | Not stated | 55m | 63m |
| Counterweight | 13.4 to 29 tonnes | 13.4 to 29 tonnes | 6.3 to 26.1 tonnes | 6.3 to 26.1 tonnes |
| Axle lines | 5 | 5 | 4 | 4 |
| More detail | Download spec sheet | View Liebherr LTM 1110-5.1 | View Grove GMK4100 | View Grove GMK4100L |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
