All-terrain crane
Liebherr LTM 1095-5.1
The Liebherr LTM 1095-5.1 is a 95 tonne, five axle all-terrain crane with a 58m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 95 tonnes
- Main boom
- 12.5m to 58m
- Swingaway jib
- 10.5m to 19mOptional
- Counterweight
- 15 to 23 tonnes
- Axle lines
- 5
Download the Liebherr LTM 1095-5.1 spec sheet

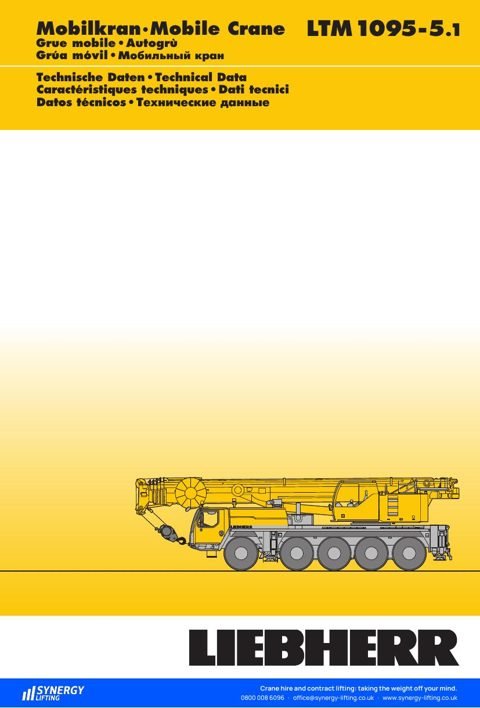

Liebherr LTM 1095-5.1 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 34 pages, 0.9MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1095-5.1 |
| Type | All-terrain crane |
| Maximum capacity | 95 tonnes |
| Main boom | 12.5m to 58m, base section and 5 telescopic sections, TELEMATIK rapid-cycle telescoping |
| Swingaway jib | Optional 10.5m to 19m, mountable at 0, 20 or 40 degrees; optional hydraulic ram for 0 to 40 degrees; optional 7m lattice telescopic boom extension; optional 2.5m erection jib |
| Counterweight | 15 tonnes basic; up to 23 tonnes with the optional additional 8 tonnes |
| Weight and axle loads | 12 tonnes per axle line, 60 tonnes in total, with 15t counterweight |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, remote control, automatic levelling, electronic inclination display |
| Axle lines | 5, all steered; 10×8 drive optional (first axle additionally driven off road) |
| Tyres and width | 10 tyres, 385/95 R25 standard; 445/95 R25 and 525/80 R25 optional |
| Suspension | Hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, water cooled, 370kW (503hp), 2,340Nm maximum torque |
| Crane drive | Liebherr 4-cylinder diesel in the superstructure, 129kW (175hp), diesel-hydraulic |
| Transmission | ZF 12-speed AS-TRONIC automated gearbox with ZF intarder, two-stage transfer case |
| Control and safety | Electric load sensing control, LICCON2 safe load indicator, test system, hoist limit switch, pipe and hose rupture safety valves |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTM 1095-5.1 compared with similar cranes
| This craneLiebherr LTM 1095-5.1 | Grove GMK4090-1 | Liebherr LTM 1090-4.1 | Liebherr LTM 1090-4.2 | |
|---|---|---|---|---|
| Maximum capacity | 95 tonnes | 90 tonnes | 90 tonnes | 90 tonnes |
| Main boom | 12.5m to 58m | 11m to 51m | 11.1m to 50m | 11.4m to 60m |
| Swingaway jib | 10.5m to 19m | 8.7m or 15m | 10.5m to 19m | 9.5m to 16m |
| Maximum tip height | Not stated | 54m | Not stated | Not stated |
| Counterweight | 15 to 23 tonnes | 18.3 tonnes | 6.7 to 21 tonnes | 8.8 to 22.5 tonnes |
| Carrier width | Not stated | 2.55m | Not stated | Not stated |
| Axle lines | 5 | 4 | 4 | 4 |
| More detail | Download spec sheet | View Grove GMK4090-1 | View Liebherr LTM 1090-4.1 | View Liebherr LTM 1090-4.2 |
