All-terrain crane
Liebherr LTM 1090-4.2
The Liebherr LTM 1090-4.2 is a 90 tonne, four axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 90 tonnes
- Main boom
- 11.4m to 60m
- Swingaway jib
- 9.5m to 16m
- Counterweight
- 8.8 to 22.5 tonnes
- Axle lines
- 4

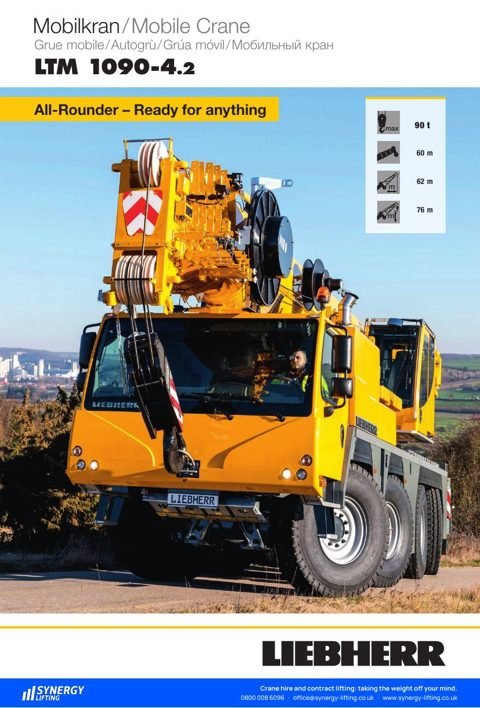

Download the Liebherr LTM 1090-4.2 spec sheet
Liebherr LTM 1090-4.2 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 30 pages, 2.6MB.
Liebherr LTM 1090-4.2 load chart summary
What the Liebherr LTM 1090-4.2 can lift at each radius on its main boom, with 22.5 tonnes of counterweight, outriggers fully extended and 360 degree slewing. Each figure is the highest on the manufacturer load chart at that radius, shown with the main boom length it applies to. The last column gives the load with the boom fully extended to 60m.
| Radius | Maximum load | Main boom length | At full 60m boom |
|---|---|---|---|
| 3m | 59.2 tonnes | 11.4m | Not charted |
| 5m | 46.7 tonnes | 11.4m | Not charted |
| 8m | 31.4 tonnes | 15.1m | Not charted |
| 10m | 24.7 tonnes | 18.9m | Not charted |
| 12m | 19.9 tonnes | 30m | 4.1 tonnes |
| 20m | 9.9 tonnes | 22.6m | 3.7 tonnes |
| 30m | 4.9 tonnes | 33.8m | 2.9 tonnes |
| 40m | 2.8 tonnes | 44.9m | 2.2 tonnes |
| 50m | 1.6 tonnes | 52.4m | 1.4 tonnes |
Taken from the manufacturer load chart for this configuration and given as a guide only. The hook block and lifting accessories count towards the load, other configurations give different figures, and nothing here forms part of a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1090-4.2 |
| Type | All-terrain crane |
| Maximum capacity | 90 tonnes |
| Main boom | 11.4m to 60m, base section and 6 telescopic sections, Telematik telescoping system |
| Swingaway jib | Double swingaway jib 9.5m to 16m, adjustable 0, 20 and 40 degrees, or hydraulically adjustable 0 to 40 degrees; 2m erection jib, adjustable 0, 20, 40 and 60 degrees |
| Counterweight | 8.8 tonnes basic; optional additional 13.7 tonnes for 22.5 tonnes in total; VarioBallast counterweight radius 3.77m or 4.71m |
| Weight and axle loads | On-road configurations from up to 10 tonnes to up to 16 tonnes per axle (40 to 64 tonnes in total), depending on counterweight carried |
| Outriggers | 4-point hydraulic outriggers, remote control, automatic levelling, electronic inclination display |
| Axle lines | 4, all steered, axles 2, 3 and 4 with planetary gears |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) and 525/80 R25 (20.5 R25) optional |
| Suspension | Hydropneumatic on all axles with automatic levelling, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, 330kW (449hp), maximum torque 2,335Nm; also drives the crane |
| Transmission | ZF 12-speed gearbox with automatic control and ZF intarder, two-stage transfer case with lockable transfer differential |
| Control and safety | LICCON2 safe load indicator, test system, hoist limit switch, safety valves against pipe and hose rupture |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTM 1090-4.2 compared with similar cranes
| This craneLiebherr LTM 1090-4.2 | Grove GMK4090-1 | Liebherr LTM 1090-4.1 | Tadano Faun ATF 90G-4 | |
|---|---|---|---|---|
| Maximum capacity | 90 tonnes | 90 tonnes | 90 tonnes | 90 tonnes |
| Main boom | 11.4m to 60m | 11m to 51m | 11.1m to 50m | 11.1m to 51.2m |
| Swingaway jib | 9.5m to 16m | 8.7m or 15m | 10.5m to 19m | Not stated |
| Jib | Not stated | Not stated | Not stated | 10m or 18m |
| Maximum tip height | Not stated | 54m | Not stated | Not stated |
| Counterweight | 8.8 to 22.5 tonnes | 18.3 tonnes | 6.7 to 21 tonnes | 6.5 to 22.3 tonnes |
| Carrier width | Not stated | 2.55m | Not stated | 2.75m |
| Axle lines | 4 | 4 | 4 | 4 |
| More detail | Download spec sheet | View Grove GMK4090-1 | View Liebherr LTM 1090-4.1 | View Tadano Faun ATF 90G-4 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
