Truck-mounted crane
Böcker AK 52
The Böcker AK 52 is a 3 tonne truck-mounted crane with a 52m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 3 tonnes6 or 12 tonnes optional
- Main boom
- 52mExtension length, 55m optional
- Jib
- 6.3m to 14.3mHydraulic, 17.3m optional
- Maximum tip height
- 38mWorking height to the jib
- Reach
- 40m at 500kg34m at 1 tonne, 18.5m at 3 tonnes
Download the Böcker AK 52 spec sheet

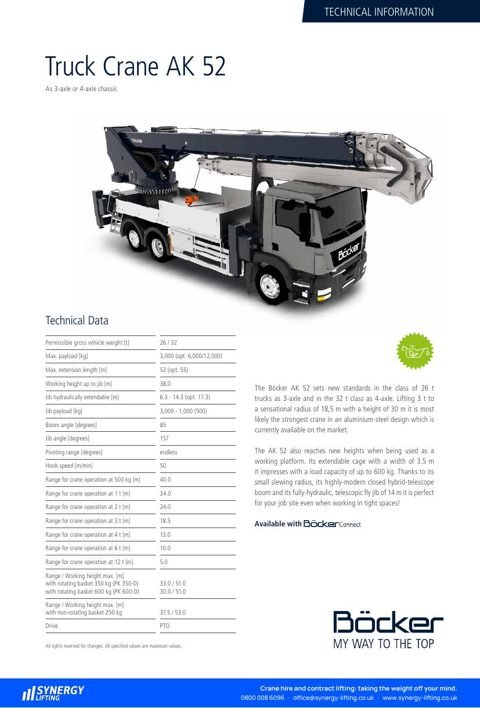

Böcker AK 52 specification sheet
Working range diagrams and dimensions. PDF, 6 pages, 0.4MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Böcker |
| Model | AK 52 |
| Type | Truck-mounted crane |
| Maximum capacity | 3 tonnes; 6 or 12 tonnes optional |
| Main boom | Closed hybrid telescopic boom in aluminium and steel; up to 52m extension length, 55m optional |
| Boom angle | Up to 85 degrees |
| Maximum tip height | 38m working height to the jib |
| Jib | Hydraulically extendable from 6.3m to 14.3m, 17.3m optional; 3,000kg to 1,000kg on the jib (500kg at the optional length); jib angle up to 157 degrees |
| Reach | 40m at 500kg, 34m at 1 tonne, 24m at 2 tonnes, 18.5m at 3 tonnes, 13m at 4 tonnes, 10m at 6 tonnes, 5m at 12 tonnes |
| Gross vehicle weight | 26 tonnes on a 3 axle chassis or 32 tonnes on a 4 axle chassis |
| Axle lines | 3 or 4 |
| Slewing | Endless |
| Hook speed | 50m/min |
| Man basket | 37.5m reach and 53m working height with the 250kg non-rotating basket; 33m and 51m with the 350kg rotating basket (PK 350-D); 30m and 51m with the 600kg rotating basket (PK 600-D) |
| Crane drive | PTO |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Böcker AK 52 compared with similar cranes
| This craneBöcker AK 52 | Böcker AK 42 | Böcker AK 46/6000 | Böcker AK 48 | |
|---|---|---|---|---|
| Maximum capacity | 3 tonnes | 3 tonnes | 3 tonnes | 3 tonnes |
| Main boom | 52m | 41.9m | 44m | 49m |
| Jib | 6.3m to 14.3m | 6.3m to 14.4m | Up to 11m | 6.3m to 14.4m |
| Reach | 40m at 500kg | 28m at 500kg | 38m at 250kg | 32.8m at 500kg |
| Maximum tip height | 38m | 27.5m | 33.8m | 34.7m |
| More detail | Download spec sheet | View Böcker AK 42 | View Böcker AK 46/6000 | View Böcker AK 48 |
Our guide explains how light truck cranes work and when to use one: What Is a Light Truck Crane?
See every crane we supply in the crane library.
