Truck-mounted crane

Böcker AK 46/6000

The Böcker AK 46/6000 is a 3 tonne truck-mounted crane with a 44m main boom, supplied with an operator for crane hire or as part of a contract lift.

Maximum capacity: 3 tonnes6 tonnes optional
Main boom: 44mExtension length, 46m optional
Jib: Up to 11m5.3m, 8.1m or 11m
Maximum tip height: 33.8mWorking height to the jib
Reach: 38m at 250kg26m at 1 tonne, 13.5m at 3 tonnes

Download the Böcker AK 46/6000 spec sheet

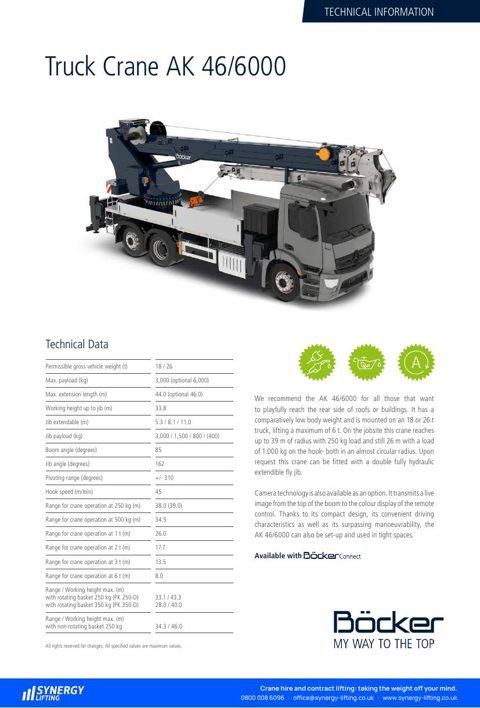

Böcker AK 46/6000 specification sheet
Working range diagrams and dimensions. PDF, 4 pages, 0.3MB.

Download the spec sheet

Specification

Item	Specification
Manufacturer	Böcker
Model	AK 46/6000
Type	Truck-mounted crane
Maximum capacity	3 tonnes; 6 tonnes optional
Main boom	Telescopic, up to 44m extension length; 46m optional
Boom angle	Up to 85 degrees
Maximum tip height	33.8m working height to the jib
Jib	Extendable to 5.3m, 8.1m or 11m; 3,000kg, 1,500kg, 800kg and 400kg; jib angle up to 162 degrees; double fully hydraulic fly jib available on request
Reach	38m at 250kg (39m), 34.5m at 500kg, 26m at 1 tonne, 17.7m at 2 tonnes, 13.5m at 3 tonnes, 8m at 6 tonnes
Gross vehicle weight	18 or 26 tonnes
Slewing	310 degrees either way
Hook speed	45m/min
Man basket	33.1m reach and 43.3m working height with the 250kg rotating basket (PK 250-D); 28m and 40m with the 350kg rotating basket (PK 350-D); 34.3m and 46m with the 250kg non-rotating basket
Control and safety	Radio remote control; boom-top camera to the remote display optional
Ownership	Supplied. Our owned cranes are the electric pick and carry machines

Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
