Truck-mounted crane
Böcker AK 37
The Böcker AK 37 is a 1.5 tonne truck-mounted crane with a 35m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 1.5 tonnes3 tonnes optional
- Main boom
- 35mExtension length, 37m optional
- Jib
- Up to 11.1m4.9m, 8m or 11.1m, 13.1m optional
- Maximum tip height
- 23.6mWorking height to the jib
- Reach
- 28m at 250kg14m at 1 tonne, 8m at 2 tonnes
Download the Böcker AK 37 spec sheet

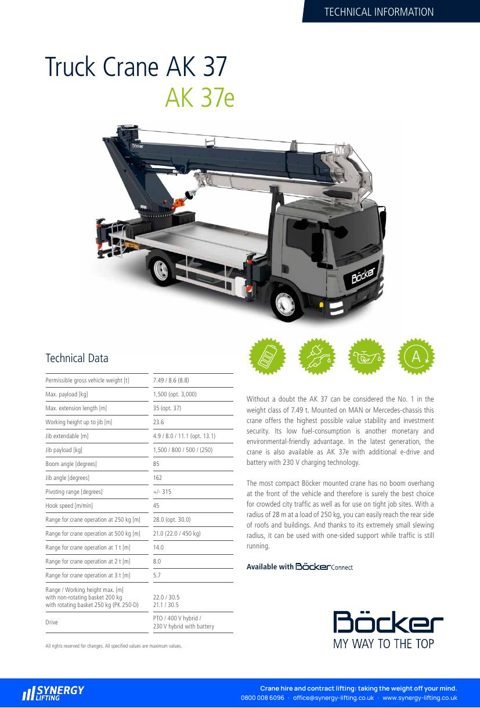

Böcker AK 37 specification sheet
Working range diagrams and dimensions. PDF, 4 pages, 0.3MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Böcker |
| Model | AK 37 |
| Type | Truck-mounted crane |
| Maximum capacity | 1.5 tonnes; 3 tonnes optional |
| Main boom | Telescopic, up to 35m extension length; 37m optional |
| Boom angle | Up to 85 degrees |
| Maximum tip height | 23.6m working height to the jib |
| Jib | Extendable to 4.9m, 8m or 11.1m, 13.1m optional; 1,500kg, 800kg, 500kg and 250kg respectively; jib angle up to 162 degrees |
| Reach | 28m at 250kg (30m optional), 21m at 500kg (22m at 450kg), 14m at 1 tonne, 8m at 2 tonnes, 5.7m at 3 tonnes |
| Gross vehicle weight | 7.49 tonnes, or 8.6 tonnes (8.8 tonnes); MAN or Mercedes chassis |
| Slewing | 315 degrees either way |
| Hook speed | 45m/min |
| Man basket | 22m reach and 30.5m working height with the 200kg non-rotating basket; 21.1m and 30.5m with the 250kg rotating basket (PK 250-D) |
| Crane drive | PTO, 400V hybrid, or 230V hybrid with battery (AK 37e) |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Böcker AK 37 compared with similar cranes
| This craneBöcker AK 37 | Böcker AK 37 X | Böcker AK 36 | Böcker AK 42 | |
|---|---|---|---|---|
| Maximum capacity | 1.5 tonnes | 1.5 tonnes | 2 tonnes | 3 tonnes |
| Main boom | 35m | 35m | 36m | 41.9m |
| Jib | Up to 11.1m | Up to 11.1m | 5.2m to 10.9m | 6.3m to 14.4m |
| Reach | 28m at 250kg | 27m at 250kg | 30m at 250kg | 28m at 500kg |
| Maximum tip height | 23.6m | 23.6m | 25.2m | 27.5m |
| More detail | Download spec sheet | View Böcker AK 37 X | View Böcker AK 36 | View Böcker AK 42 |
Our guide explains how light truck cranes work and when to use one: What Is a Light Truck Crane?
See every crane we supply in the crane library.
