Telehandler
Manitou MT 1840 A
The Manitou MT 1840 A is a 4 tonne telehandler with a maximum lift height of 17.55m and a maximum forward reach of 13.08m. Its key figures and specification are below, with the manufacturer spec sheet to download.

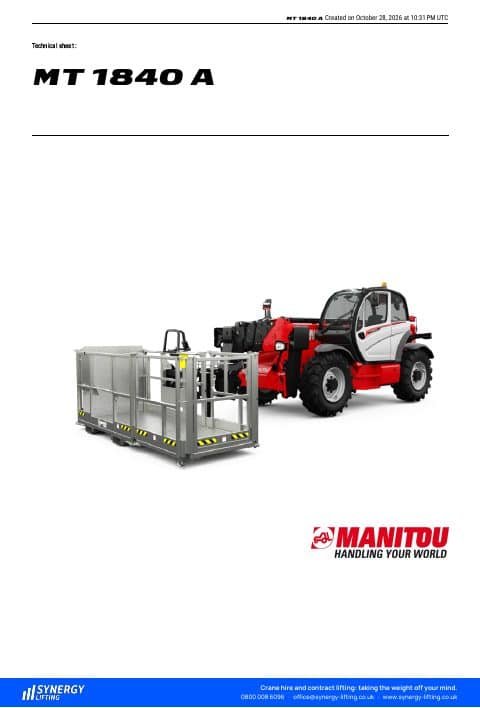

Spec sheet
Download the Manitou MT 1840 A spec sheet
Manitou MT 1840 A
Download the manufacturer’s specification sheet (PDF · 4 pages · 1.2MB).
Key figures
Manitou MT 1840 A key figures
- Maximum capacity
- 4 tonnes4,000kg
- Maximum lift height
- 17.55m
- Maximum forward reach
- 13.08m
- Weight
- 11,970kgUnladen, with forks
- Overall width
- 2.36m
- Overall height
- 2.45m
- Engine power
- 75kW100hp
Specification
Manitou MT 1840 A specification
| Item | Specification |
|---|---|
| Manufacturer | Manitou |
| Model | MT 1840 A |
| Type | Telehandler |
| Maximum capacity | 4,000kg |
| Maximum lift height | 17.55m |
| Maximum forward reach | 13.08m |
| Weight | 11,970kg unladen, with forks |
| Length to carriage | 6.15m |
| Length to face of forks | 6.27m |
| Overall width | 2.36m |
| Overall height | 2.45m |
| Wheelbase | 3.07m |
| Ground clearance | 0.37m |
| Turning radius | 3.94m |
| Tyres | Alliance 400/80-24-162A8 |
| Forks | 1200 mm x 125 mm x 50 mm |
| Breakout force | 8,391daN |
| Engine | Deutz TCD 3.6, Stage V |
| Engine power | 75kW (100hp) |
| Transmission | Torque converter |
| Maximum travel speed | 25.6km/h |
| Hydraulics | 167 l/min, 265 bar |
| Fuel tank | 140 litres |
| Cab | Cabin ROPS-FOPS level 2 |
| Controls | JSM |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by version, options and attachments, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: always work to the load chart for the machine and attachment on site.
Compare
Manitou MT 1840 A compared with similar telehandlers
| This telehandlerManitou MT 1840 A | Manitou MT 1840 e | Manitou MT 1840 HA | Merlo P50.18 | |
|---|---|---|---|---|
| Maximum capacity | 4 tonnes | 4 tonnes | 4 tonnes | 5 tonnes |
| Maximum lift height | 17.55m | 17.55m | 17.55m | 17.5m |
| Maximum forward reach | 13.08m | 13.1m | 13.08m | 13.5m |
| Weight | 11,970kg | 11,870kg | 11,970kg | 13,300kg to 13,650kg |
| Overall width | 2.36m | 2.36m | 2.36m | 2.48m |
| Overall height | 2.45m | 2.49m | 2.45m | 2.54m |
| Engine power | 75kW | 56kW | 75kW | 85.9kW to 100kW |
