All-terrain crane
Liebherr LTM 1400-7.1
The Liebherr LTM 1400-7.1 is a 400 tonne, seven axle all-terrain crane with a 60m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

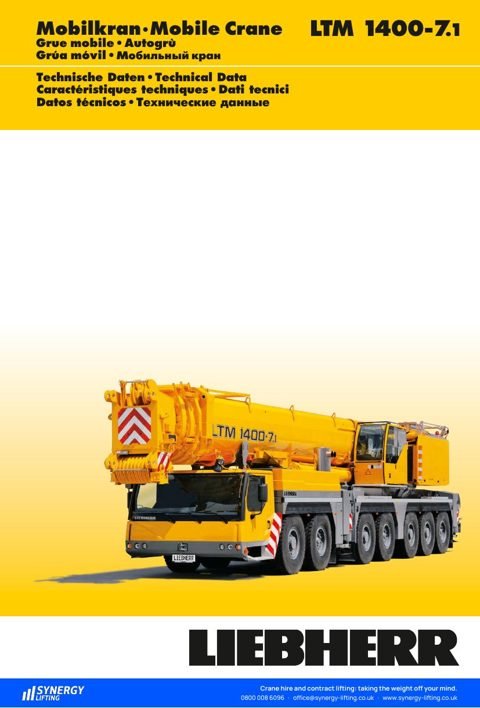

Download the Liebherr LTM 1400-7.1 spec sheet
Liebherr LTM 1400-7.1
Download the manufacturer’s specification sheet (PDF · 58 pages · 3.1MB).
Key figures
Liebherr LTM 1400-7.1 key figures
- Maximum capacity
- 400 tonnes
- Main boom
- 15.4m to 60m
- Jib
- Up to 84mLattice luffing jib 14m to 84m; fixed lattice jib 7m to 56m; both optional
- Counterweight
- 100 to 140 tonnes
- Axle lines
- 7
Specification
Liebherr LTM 1400-7.1 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1400-7.1 |
| Type | All-terrain crane |
| Maximum capacity | 400 tonnes at 3m radius |
| Main boom | 15.4m to 60m, base section and 4 telescopic sections, TELEMATIK telescoping system; optional telescopic boom guying system |
| Jib | Optional fixed lattice jib 7m to 56m at 0, 20 or 40 degrees; optional lattice luffing jib 14m to 84m |
| Counterweight | 100 tonnes (base slab 15t + 5t, 6 slabs of 10t, 4 slabs of 5t), hydraulic ballasting device; up to 140 tonnes with 4 optional additional 10 tonne slabs |
| Weight and axle loads | 12 tonnes per axle, 84 tonnes in total |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, automatic levelling, electronic inclination indicator |
| Axle lines | 7, all steered; 14 x 8 drive optional (axle 6 additionally driven) |
| Tyres and width | 14 tyres, 385/95 R25 standard; 445/95 R25 or 525/80 R25 optional |
| Suspension | Niveaumatik hydropneumatic, all axles, hydraulically lockable |
| Engine | Liebherr 8-cylinder diesel, 450kW (612hp), 2,856Nm |
| Crane drive | Liebherr 6-cylinder diesel, 240kW (326hp), 1,525Nm; diesel-hydraulic with 4 axial piston variable displacement pumps |
| Transmission | ZF TC-TRONIC automatic with converter clutch, 12 forward and 2 reverse, transfer case with transfer differential |
| Control and safety | Two self-centring joysticks, LICCON safe load indicator, hoist limit switches, safety valves against rupture of pipes and hoses |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1400-7.1 compared with similar cranes
| This craneLiebherr LTM 1400-7.1 | Liebherr LTM 1450-8.1 | Grove GMK6300L | Grove GMK6300L-1 | |
|---|---|---|---|---|
| Maximum capacity | 400 tonnes | 450 tonnes | 300 tonnes | 300 tonnes |
| Main boom | 15.4m to 60m | 16.1m to 85m | 15.6m to 80m | 15.6m to 80m |
| Swingaway jib | Not stated | Not stated | 12m or 21m | 12m or 21m |
| Jib | Up to 84m | Up to 84m | Not stated | Not stated |
| Maximum tip height | Not stated | Not stated | 83m | 83m |
| Counterweight | 100 to 140 tonnes | 134 tonnes | 54.5 to 92.5 tonnes | 54.5 to 92.5 tonnes |
| Axle lines | 7 | 8 | 6 | 6 |
