All-terrain crane
Liebherr LTM 1150-5.3
The Liebherr LTM 1150-5.3 is a 150 tonne, five axle all-terrain crane with a 66m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet

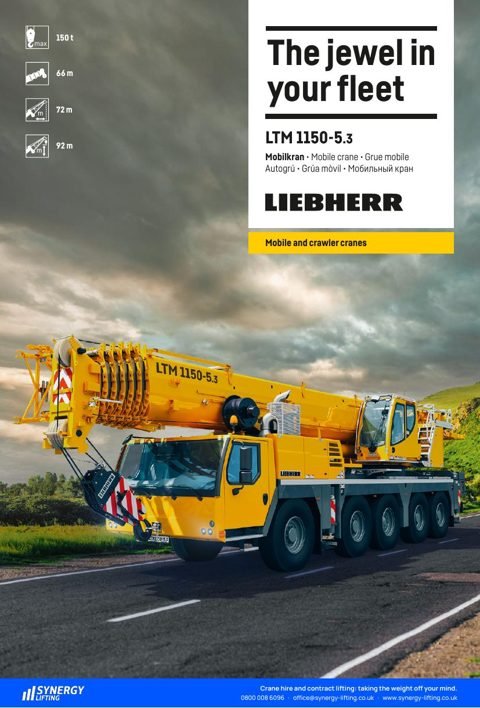

Download the Liebherr LTM 1150-5.3 spec sheet
Liebherr LTM 1150-5.3
Download the manufacturer’s specification sheet (PDF · 30 pages · 4.3MB).
Key figures
Liebherr LTM 1150-5.3 key figures
- Maximum capacity
- 150 tonnes
- Main boom
- 12.3m to 66m
- Swingaway jib
- 10.8m to 19mOptional
- Counterweight
- 29 to 45 tonnes
- Axle lines
- 5
Specification
Liebherr LTM 1150-5.3 specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1150-5.3 |
| Type | All-terrain crane |
| Maximum capacity | 150 tonnes |
| Main boom | 12.3m to 66m, base section and 6 telescopic sections, TELEMATIK rapid-cycle telescoping |
| Swingaway jib | Optional single folding jib 10.8m or double swing-away jib 10.8m to 19m, mechanical adjustment 0, 20 or 40 degrees or hydraulic adjustment 0 to 40 degrees; optional 7m telescopic boom extension; optional 2.9m assembly jib |
| Counterweight | 29 tonnes; up to 45 tonnes with the optional additional 16 tonnes |
| Outriggers | 4-point, hydraulically telescoping horizontally and vertically, automatic levelling, electronic inclination indicator |
| Axle lines | 5, all steered; 10×8 drive optional (first axle additionally driven) |
| Tyres and width | 10 tyres, 385/95 R25 standard; 445/95 R25 and 525/80 R25 optional |
| Suspension | Niveaumatik hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, water cooled, 400kW (544hp), 2,516Nm maximum torque, EU 2016/1628 and EPA/CARB or ECE-R.96; also drives the superstructure mechanically |
| Transmission | ZF 12-speed automated gearbox with ZF intarder, two-stage transfer case |
| Control and safety | Electric load sensing control, LICCON2 safe load indicator, test system, hoist limit switch, pipe and hose rupture safety valves |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Liebherr LTM 1150-5.3 compared with similar cranes
| This craneLiebherr LTM 1150-5.3 | Grove GMK5150-1 | Grove GMK5150L | Grove GMK5150L-1 | |
|---|---|---|---|---|
| Maximum capacity | 150 tonnes | 150 tonnes | 150 tonnes | 150 tonnes |
| Main boom | 12.3m to 66m | 12.8m to 50.8m | 12.8m to 60m | 12.8m to 60m |
| Swingaway jib | 10.8m to 19m | 11.2m or 17.8m | 11.2m or 17.8m | 11.2m or 17.8m |
| Maximum tip height | Not stated | 53.8m | 63m | 63m |
| Counterweight | 29 to 45 tonnes | 44.5 tonnes | 44.5 tonnes | 44.5 tonnes |
| Axle lines | 5 | 5 | 5 | 5 |
