All-terrain crane
Liebherr LTM 1055-3.2
The Liebherr LTM 1055-3.2 is a 55 tonne, three axle all-terrain crane with a 40m main boom, supplied with an operator for crane hire or as part of a contract lift.
- Maximum capacity
- 55 tonnes
- Main boom
- 10.2m to 40m
- Swingaway jib
- 9.5m or 16m
- Counterweight
- 7 to 12 tonnes
- Axle lines
- 3

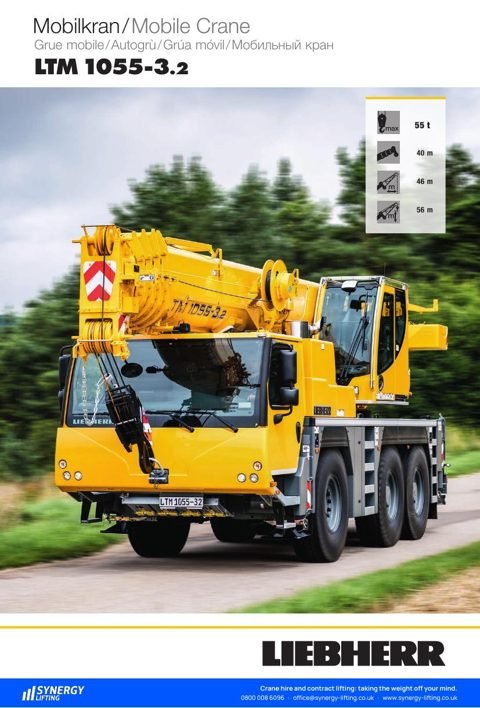

Download the Liebherr LTM 1055-3.2 spec sheet
Liebherr LTM 1055-3.2 specification sheet
Load charts, working range diagrams, dimensions and axle loads. PDF, 28 pages, 2.1MB.
Specification
| Item | Specification |
|---|---|
| Manufacturer | Liebherr |
| Model | LTM 1055-3.2 |
| Type | All-terrain crane |
| Maximum capacity | 55 tonnes |
| Main boom | 10.2m to 40m, base section and 4 telescopic sections, TELEMATIK telescoping system |
| Swingaway jib | Single folding jib 9.5m or double swingaway jib 9.5m to 16m, adjustable 0, 20 and 40 degrees; 2.5m erection jib |
| Counterweight | 7 tonnes; optional additional 5 tonnes for 12 tonnes in total |
| Weight and axle loads | 12 tonnes per axle, 36 tonnes in total, with 5.5t counterweight |
| Outriggers | 4-point hydraulic outriggers, remote control, automatic levelling, electronic inclination display |
| Axle lines | 3, all steered, axles 2 and 3 driven with lockable differentials (6×6 optional, axle 1 additionally driven) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; 445/95 R25 (16.00 R25) or 525/80 R25 (20.5 R25) optional |
| Suspension | Hydropneumatic on all axles, hydraulically lockable |
| Engine | Liebherr 6-cylinder diesel, 270kW (367hp), maximum torque 1,965Nm; also drives the crane |
| Transmission | ZF 12-speed gearbox with automatic control, two-stage transfer case with lockable transfer differential |
| Control and safety | LICCON2 safe load indicator, hoist limit switch, safety valves against pipe and hose rupture, test system for servicing |
| Ownership | Supplied. Our owned cranes are the electric pick and carry machines |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Liebherr LTM 1055-3.2 compared with similar cranes
| This craneLiebherr LTM 1055-3.2 | Grove GMK3055 | Terex AC 55 L | Terex Challenger 3160 | |
|---|---|---|---|---|
| Maximum capacity | 55 tonnes | 55 tonnes | 55 tonnes | 55 tonnes |
| Main boom | 10.2m to 40m | 9.6m to 43m | 9.9m to 44m | 10.3m to 50m |
| Swingaway jib | 9.5m or 16m | 8.7m or 15m | 8m or 15m | Not stated |
| Maximum tip height | Not stated | 45.5m | 62m | Not stated |
| Counterweight | 7 to 12 tonnes | 7.6 to 11.6 tonnes | Up to 11.6 tonnes | 6.8 tonnes |
| Axle lines | 3 | 3 | 3 | 3 |
| More detail | Download spec sheet | View Grove GMK3055 | View Terex AC 55 L | View Terex Challenger 3160 |
Our guide explains how all-terrain cranes work and when to use one: What Is an All-Terrain Crane?
See every crane we supply in the crane library.
