All-terrain crane
Grove GMK5150XL
The Grove GMK5150XL is a 150 tonne, five axle all-terrain crane with a 68.7m main boom, supplied with an operator for crane hire or as part of a contract lift.
Spec sheet
Download the Grove GMK5150XL spec sheet
Grove GMK5150XL

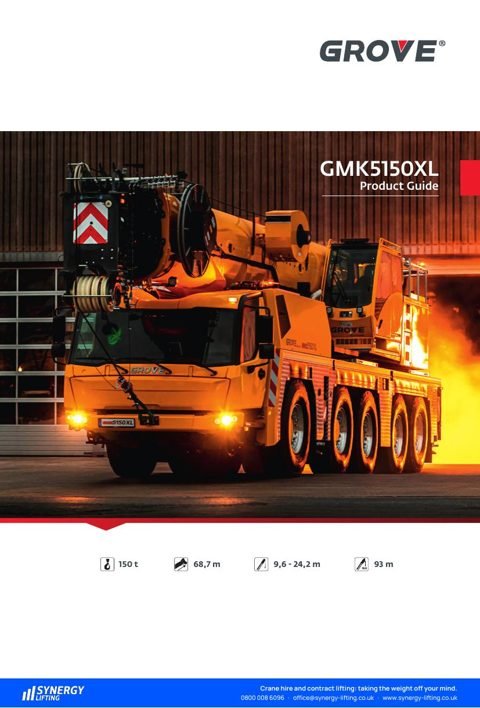

Download the manufacturer’s specification sheet (PDF · 48 pages · 6.0MB).
Key figures
Grove GMK5150XL key figures
- Maximum capacity
- 150 tonnes
- Main boom
- 13m to 68.7m
- Swingaway jib
- 9.6m or 16.2mBi-fold, up to 24.2m with extensions, optional
- Maximum tip height
- 72mOn the main boom
- Counterweight
- 44.5 tonnes
- Axle lines
- 5
Specification
Grove GMK5150XL specification
| Item | Specification |
|---|---|
| Manufacturer | Grove (Manitowoc) |
| Model | GMK5150XL |
| Type | All-terrain crane |
| Maximum capacity | 150 tonnes (over rear with special equipment) |
| Main boom | 13m to 68.7m, seven section TWIN-LOCK |
| Boom angle | -1.5 to +83 degrees |
| Maximum tip height | 72m on the main boom |
| Swingaway jib | Optional bi-fold 9.6m or 16.2m, hydraulic offset and luffing under load 0 to 40 degrees, controlled from the crane cab; optional 8m boom extension and 6m jib extension, maximum total length 24.2m |
| Counterweight | 44.5 tonnes in various sections (30.9 tonnes within 2.75m vehicle width), hydraulic removal system |
| Weight and axle loads | Counterweight configurations from 1 tonne up to taxi configurations of 12 to 16.5 tonnes per axle |
| Outriggers | 4 double hydraulically telescoping beams with vertical cylinders, automatic levelling |
| Axle lines | 5, all steered, lines 2, 4 and 5 driven (10 x 6 x 10; 10 x 8 x 10 optional) |
| Tyres and width | 385/95 R25 (14.00 R25) standard; optional 445/95 R25 at 2.75m vehicle width; optional 525/80 R25 at 2.9m vehicle width |
| Suspension | MEGATRAK independent hydropneumatic, all wheels, with hydraulic lockout |
| Engine | Mercedes-Benz OM471LA diesel, 6 cylinders, 390kW at 1,700rpm; Euromot 5 / Tier 4 final, approved for HVO |
| Transmission | Mercedes G 280, 16 forward and 2 reverse, 2-stage transfer case |
| Control and safety | Crane Control System (CCS) with graphic display, load moment and independent anti-two-block system with control lever lock-out, Grove CONNECT telematics |
Specifications are taken from the manufacturer published specification sheet for this model and are given as a guide only. Machines vary by build, options and configuration, and figures can change without notice. Nothing on this page forms part of a contract or a lift plan: the crane, its configuration and its load chart are confirmed when we quote and plan your lift.
Compare
Grove GMK5150XL compared with similar cranes
| This craneGrove GMK5150XL | Grove GMK5150-1 | Grove GMK5150L | Grove GMK5150L-1 | |
|---|---|---|---|---|
| Maximum capacity | 150 tonnes | 150 tonnes | 150 tonnes | 150 tonnes |
| Main boom | 13m to 68.7m | 12.8m to 50.8m | 12.8m to 60m | 12.8m to 60m |
| Swingaway jib | 9.6m or 16.2m | 11.2m or 17.8m | 11.2m or 17.8m | 11.2m or 17.8m |
| Maximum tip height | 72m | 53.8m | 63m | 63m |
| Counterweight | 44.5 tonnes | 44.5 tonnes | 44.5 tonnes | 44.5 tonnes |
| Axle lines | 5 | 5 | 5 | 5 |
